HA SFLS Approach lighting system sequenced flashing

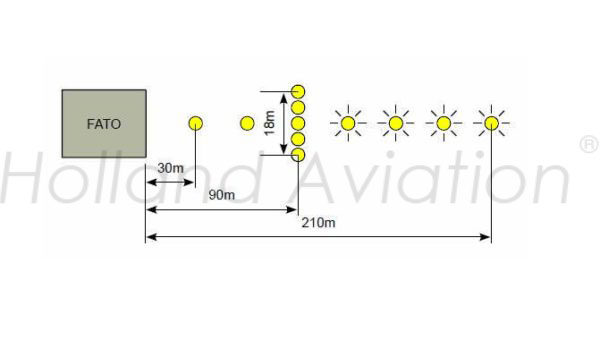

Flashing guideline to the TLOF

Request a quote

More information or advice?

Description

HA SFLS Approach Lighting System: Key Features:

  • Sequenced flashing lights: Gives a visual pattern along the approach line, enhancing pilot guidance and safety.
  • Standard configuration with 4 lights: Comes with four sequenced flashing lights to ensure comprehensive illumination of the approach path.
  • Enhanced visibility: The flashing sequence helps pilots navigate more accurately, especially in low light or bad weather.
  • Durable construction: Made to withstand harsh weather conditions, including rain, wind, and extreme temperatures.
  • Reliable performance: Engineered for consistent operation, reducing maintenance needs and ensuring continuous safety.



More products

Additional information

Light Source

High power LED

Light Output

>3500 Cd

Service life of the LED's

> 75.000 Hours

Cabinet Material

Steel powder coated gray RAL 7035

Cable Glands

1x M25 (Input), 4x M20 (output)

Dimensions of the Approach Light

Ø133x240mm

Dimensions Controller unit

340x400x170mm

Power supply controller

110-240VAC

Weight Approach Light

2,1 kg

Weight Controller Unit

15 kg

Compliances

ICAO Annex 14 Vol I Aerodromes, ICAO Annex 14 Vol II Heliports, EASA ADR
